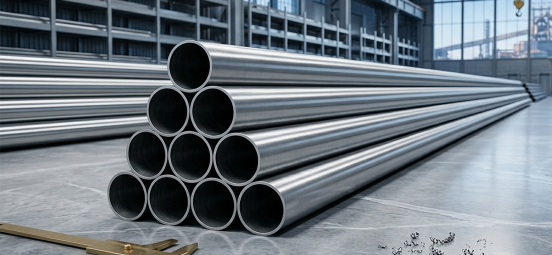

Stainless Steel Pipes & Tubes
Grevinox Overseas is a leading manufacturer, stockist, and exporter of high-grade Stainless Steel Pipes and Tubes. We supply both Seamless and Welded (ERW/EFW) pipes conforming to international quality standards such as ASTM A312, ASTM A213, ASTM A269, and ASME/DIN specifications. Our products are widely utilized in heavy-duty industries across the globe due to their exceptional corrosion resistance, durability, high-pressure handling capability, and thermal stability.
SS Pipes & Tubes Specifications
We supply stainless steel piping solutions in a vast range of dimensions, wall thicknesses, and schedules suitable for critical applications in hazardous environments.
| Parameters | Specifications |
|---|---|
| Standard Specifications | ASTM A312, ASTM A213, ASTM A269, ASTM A358, ASME SA312 / SA213 / SA269 / SA358 |
| Sizes (Seamless) | 1/2" NB to 24" NB (Nominal Bore) |
| Sizes (Welded / ERW) | 1/2" NB to 48" NB (Nominal Bore) |
| Outer Diameter (OD) | 6.00 mm OD up to 914.4 mm OD (up to 36" OD) |
| Wall Thickness | 0.3mm to 50mm (Schedule 5S, 10S, 20S, 40S, 80S, 120, 160, XXS) |
| Length | Single Random, Double Random, Cut Length, Coiled (up to 150 meters) |
| Types / Forms | Seamless, Welded, ERW, EFW, LSAW, Round, Square, Rectangular, Capillary, U-Tubes |
| Surface Finish | Annealed & Pickled, Bright Annealed, 2B, No.4 Satin, Mirror Polish (600 Grit) |
| Value Added Services | Cutting, Beveling, Threading, Polishing, Custom Fabrication, Heat Treatment |
Stainless Steel Grades & Applications
We stock and process various stainless steel grades, including Austenitic, Ferritic, Duplex, and Super Duplex classes, to provide optimal resistance to acids, chemicals, and extreme temperatures.
| Grade Family | Common Grades | Key Features & Applications |
|---|---|---|
| Austenitic (Standard) | SS 304 / 304L, SS 316 / 316L | High corrosion resistance, excellent formability. Used in food processing, chemical piping, and general construction. |
| High Temperature | SS 321 / 321H, SS 347 / 347H, SS 310S / 310H | Stabilized with Titanium/Niobium or high Chromium-Nickel. Excellent creep strength at high temperatures. Used in heat exchangers and boiler pipes. |
| Super Austenitic | SS 904L, SMO 254 (UNS S31254) | High resistance to chloride stress corrosion cracking and pitting. Used in paper pulp, sulfuric acid processing, and marine applications. |
| Duplex & Super Duplex | Duplex 2205 (S32205), Super Duplex 2507 (S32750) | Combining austenitic and ferritic structures for double the strength of standard grades. Extreme resistance to localized corrosion. Used in oil exploration and marine piping. |
Stainless Steel Pipes Dimensions & Weight Chart
Refer to our standard schedule-wise weight chart (in kg per meter) for Stainless Steel Pipes to plan your piping layout calculations.
| Nominal Size (NB) | Outer Diameter (mm) | Wall Thickness (SCH 10S - mm) | Weight (SCH 10S - kg/m) | Wall Thickness (SCH 40S - mm) | Weight (SCH 40S - kg/m) |
|---|---|---|---|---|---|
| 1/2" NB | 21.34 | 2.11 | 1.02 | 2.77 | 1.29 |
| 3/4" NB | 26.67 | 2.11 | 1.30 | 2.87 | 1.71 |
| 1" NB | 33.40 | 2.77 | 2.13 | 3.38 | 2.54 |
| 1-1/2" NB | 48.26 | 2.77 | 3.16 | 3.68 | 4.11 |
| 2" NB | 60.33 | 2.77 | 4.00 | 3.91 | 5.53 |
| 3" NB | 88.90 | 3.05 | 6.57 | 5.49 | 11.47 |
| 4" NB | 114.30 | 3.05 | 8.51 | 6.02 | 16.32 |
| 6" NB | 168.28 | 3.40 | 14.05 | 7.11 | 28.70 |
| 8" NB | 219.08 | 3.76 | 20.30 | 8.18 | 43.20 |
| 10" NB | 273.05 | 4.19 | 28.25 | 9.27 | 61.27 |
Quality Assurance & Testing
At Grevinox Overseas, quality is our foremost priority. Every pipe and tube undergoes rigorous inspection and testing to conform to industrial and structural requirements before dispatch. We provide Mill Test Certificates (MTC) according to EN 10204 3.1 standards with all supplies.
- Hydrostatic Test: Verifies the pressure-retaining capacity of pipes and checks for any leakages under high pressure.
- Eddy Current & Ultrasonic Test: Non-destructive testing (NDT) to inspect sub-surface cracks, flaws, and defects.
- Positive Material Identification (PMI): Spectro testing to analyze and confirm the exact chemical composition of alloys.
- Mechanical Testing: Includes Tensile, Yield strength, Elongation, Flattening, and Hardness tests to verify structural strength.
- Visual & Dimensional Check: Checks length, straightness, outer diameter, wall thickness, and surface finishes.
- Third-Party Inspection (TPI): We welcome TPI from reputed global agencies such as TUV, DNV, Bureau Veritas, SGS, LLOYDS, etc.
Industrial Applications
Our stainless steel pipes and tubes are engineered to perform reliably under severe pressure, corrosive environments, and temperature cycles. Major sectors we serve include:
- Oil & Gas / Refineries: Downhole tubing, subsea pipelines, offshore rigs, and transport pipelines.
- Chemical & Petrochemical: Fluid transport lines dealing with strong acids, alkalis, and toxic gases.
- Power Generation: Superheater, reheater, and steam piping in thermal and nuclear power plants.
- Pharmaceuticals & Food Processing: Hygienic high-purity piping systems (sanitary tubing) preventing batch contamination.
- Marine & Desalination: Piping for seawater coolant loops, distillation units, and shipbuilding.
- Water Treatment Plants: Water pipelines, sewage plants, and structural processing towers.
Domestic Supply Network & Cities Served
Grevinox Overseas is a trusted domestic supplier and distributor of high-quality Stainless Steel Pipes and Tubes across India. We deliver top-grade piping materials to all major industrial zones, manufacturing hubs, and cities including:
West & South India
- Mumbai, Pune, Nagpur (MH)
- Thane, Nashik, Aurangabad (MH)
- Ahmedabad, Surat, Vadodara (GJ)
- Rajkot, Jamnagar, Vapi (GJ)
- Bengaluru, Mangaluru, Mysuru (KA)
- Chennai, Coimbatore, Madurai (TN)
- Hyderabad, Warangal (TS)
- Visakhapatnam, Vijayawada (AP)
- Kochi, Kozhikode (KL)
- Vasco da Gama, Panaji (GA)
North, East & Central India
- New Delhi, Noida, Gurugram
- Ghaziabad, Faridabad, Sonipat
- Ludhiana, Jalandhar, Amritsar (PB)
- Kanpur, Lucknow, Agra (UP)
- Indore, Bhopal, Jabalpur (MP)
- Raipur, Bhilai, Bilaspur (CG)
- Kolkata, Howrah, Durgapur (WB)
- Jamshedpur, Ranchi, Dhanbad (JH)
- Bhubaneswar, Cuttack, Rourkela (OD)
- Guwahati, Dibrugarh (AS)
Prompt Delivery & Supply Chain
We partner with leading transport and cargo services in India to ensure prompt dispatch, safe transit, and timely delivery of your orders directly to your factory, warehouse, or project site with proper documentation (MTC, GST Invoice, Lorry Receipt).
